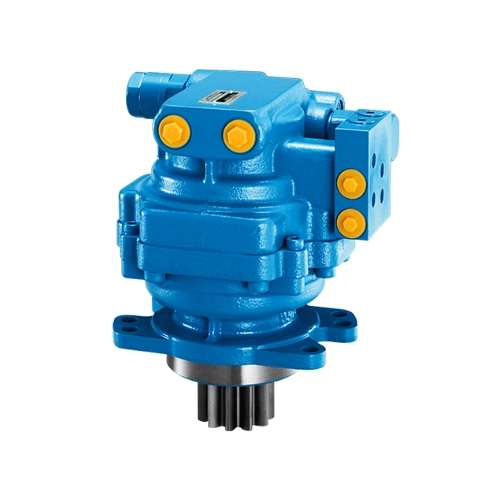

Nachi Slew Drive PCR Hydraulic Motor

Nachi PCR Slew Drive Hydraulic Motor is a compact swing drive mechanism designed specifically for compact excavators and construction machines. Rather than having three distinct parts such as a hydraulic motor, gearbox and brakes, the PCR brings all three parts together in a compact design. Installation space is minimized along with simplifying the design of the machine.

In the PCR range, an axial piston hydraulic motor is directly linked to a planetary reduction gearbox. The hydraulic pressure acts upon the piston motor that delivers torque to the planetary gearbox for controlled rotation of the excavator's upper structure. To ensure greater operational safety, the PCR engine is equipped with a parking brake of negative type, which can reliably fix the swing mechanism when the hydraulic pressure drops.

Nachi offers the PCR range in five distinct models: PCR-1B, PCR-2B, PCR-3B, PCR-4B and PCR-5B. The displacement capacity varies between 236 cm³/rev to 907 cm³/rev depending upon the model. Similarly, the torque capacity also varies between 627 to 3,537 Nm and operating pressure varies between 21.6 MPa to 24.5 MPa. These models are suitable for compact excavators between 2.5 to 8 tons.

One of the main benefits of the PCR models lies in their maintenance-free gearbox lubrication. The gearbox is lubricated with the hydraulic oil used by the machine, thus dispensing with the need to change the gear oil separately and saving on regular maintenance procedures. It helps reduce downtime and cuts maintenance costs throughout the machine’s lifetime.

The Nachi PCR Slew Drive Hydraulic Motor is an extremely popular product in compact excavators, mini excavators and other tracked construction machinery that needs dependable slew, compact size and durability. The PCR series of motors from Nachi is considered one of the key hydraulic solutions offered by Nachi for compact construction machinery.

Rexton Hydraulics offers Nachi PCR Slew Drive Hydraulic Motors and professional services for repair, testing, maintenance, rebuild, installation and replacement of these motors. We also offer high-quaity spare parts and technical services for different Nachi hydraulic drives.
