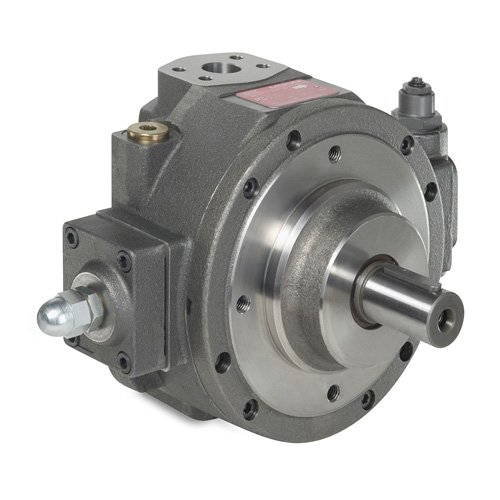

Moog RKP Radial Piston Hydraulic Pump
Moog RKP Radial Piston Hydraulic Pump
Moog RKP Radial Piston Pumps are variable-displacement pumps designed for open-circuit hydraulic systems. Available in medium- and high-pressure versions, the range combines a compact and robust construction with low pulsation and high volumetric efficiency.
- Available Pump Sizes: 19, 32, 45, 63, 80 and 140 cm³/rev
- Pump Design: Variable-Displacement Radial Piston Pump
- Hydraulic Circuit: Open Circuit
- Available Pressure Series: Medium-Pressure and High-Pressures
- Maximum Operating Pressure: 280 bar for Medium-Pressure Series
- Maximum Operating Pressure: 350 bar for High-Pressure Series
- Peak Pressure: Up to 350 bar – 420 bar
- Maximum Speed: 2,100 to 2,900 rpm
Share Product:
Moog RKP Radial Piston Hydraulic Pump is a variable displacement pump that is engineered to deliver consistent hydraulic pressure and flow control within an open circuit system. For over four decades now, Moog has provided radial piston pumps to the industrial sector. The RKP series is well-known for its durable design, quiet performance, quick response time, efficiency, and durability in difficult machinery.
The pump works with the help of several pistons mounted radially around a rotating cylinder block. The pistons push against an adjustable stroke ring. As the cylinder block turns, due to the off-center position of the stroke ring, the pistons extend outwards and then inwards. This creates an increase and decrease in the volume of the piston chambers. Consequently, the pump draws the hydraulic fluid from the inlet port and discharges it at the pressure outlet port.
By varying the stroke ring position, it varies the stroke length of the piston. It will then vary the displacement of the pump and hence its discharge rate. As the stroke ring moves towards the middle, there is reduction in the displacement while moving away from the middle increases the displacement. Variable displacement feature helps the hydraulic system to discharge at a rate that meets the needs of the machinery.
The RKP series are available in displacements of 19, 32, 45, 63, 80 and 140 cubic centimeters per revolution as the standard range from Moog. The maximum allowable speed is from 2,100 rpm to 2,900 rpm, depending on the pump chosen and operating conditions. The series are offered with various means of controlling pressure, flow and displacement.
We at Rexton Hydraulic supply Moog RKP Radial Piston Hydraulic Pumps and provide professional pump repairs, testing, maintenance, installation and replacement services. We also supply Moog RKP Radial Piston Hydraulic Pumps spare parts and offer technical expertise in helping clients choose the right displacement, pressure ratings, control systems, rotations and mounting options.
