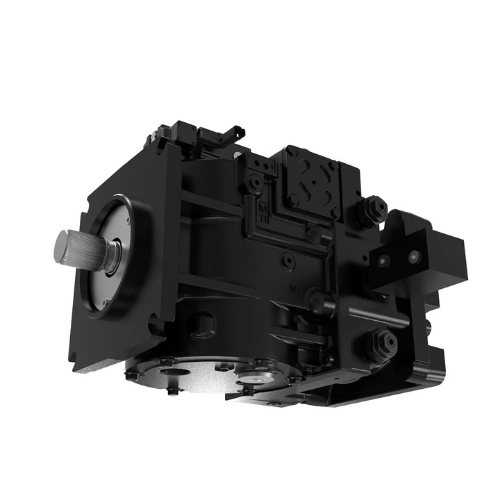

John Deere KV25950 Hydraulic Pump

John Deere KV25950 Hydraulic Pump is a large machine-specific pump assembly listed for compatible 240 and 250 equipment. It weighs 89 lb and measures 9 × 9.2 × 21.5 inches. The unit converts mechanical drive power into hydraulic flow for connected machine circuits.

Product type:- Hydraulic pump assembly
Part number:- KV25950
Product dimensions:- 9 in height × 9.2 in width × 21.5 in length
Product weight:- 89 lb
Listed compatible equipment:- John Deere 240 and 250
Selection checks:- Verify serial range, shaft, mounting, rotation, ports and drive arrangement

Request A Quote

Share Product:

Description

John Deere KV25950 Hydraulic Pump is a pump assembly designed specifically for certain machines in John Deere 240/250 line. Dimensions of the assembly are 9 inches in height, 9.2 inches in width and 21.5 inches in length with a total product weight of 89 lb. The assembly must be chosen as a matched combination of hydraulic and mechanical elements since drive configuration, ports, and mounting options influence the integration with the machine.

In the process of working, the pump converts the mechanical energy of drive into hydraulic flow. Pressure development depends on the resistance provided by the operating load. KV25950 must be verified according to the machine parts list and serial range. Shaft parameters, spline or coupling specifications, direction of rotation, port locations, and mounting points must be compared with those of the removed assembly.

The reason for the failure must be determined before installing a replacement pump assembly when a large one fails. Contamination, lack of lubrication, suction conditions, overheating of hydraulic fluid, misalignment, and pressure may reduce the life of the part. The tank, cooler, filters, and hoses must be checked for damage; if debris was released by the failed unit, then the circuit must be cleaned. The drive system should be inspected to ensure that the replacement shaft will not be exposed to excessive wear.

Priming is very important when it comes to such units. The replacement must have clean hydraulic fluid before being started, and testing must be conducted with little load. The technician must check for stability, normal noise, joints without leaks, and correct temperature. Flow and pressure tests can be used to distinguish the problem in the pump from problems in valves, motors, or controls of other parts of the machine.

Our company provides John Deere KV25950 Hydraulic Pumps of aftermarket new condition and offers independent repair, testing, maintenance, troubleshooting and installation services. We can help with part identification, configuration verification, and other spare parts.
