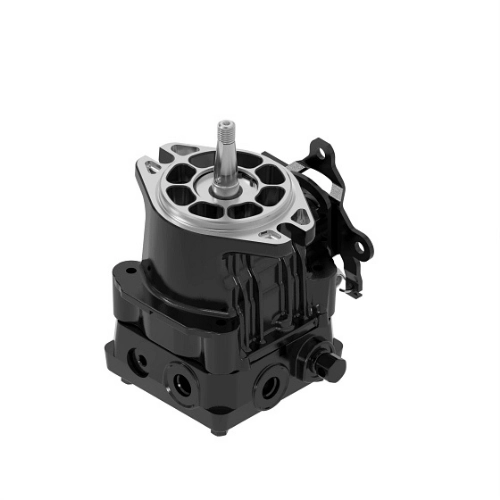

John Deere RH AUC13380 Wheel Hydraulic Pump

John Deere RH AUC13380 Wheel Hydraulic Pump is an OEM tier part number AUC13380 right hand wheel pump. This is a side-specific wheel hydraulic pump, and hence RH is a vital specification for this product. In use, the pump assists in controlling the wheel movement through mechanical input conversion into hydraulic flow for the drive circuit.

We need to carefully select side-specific wheel pumps because a left-hand and a right-hand wheel pump may differ in aspects such as rotation, control, ports, linkages, or mountings despite having the same housing. The AUC13380 part number, RH specification, equipment model, and serial-number range should be checked before purchase of this product. John Deere recommends that the user selects the equipment for verification, and this process cannot be substituted with visual inspection.

Uneven movement, poor performance of the drive, noise, or overheating does not necessarily mean that the wheel pump is the only faulty unit. Faults can also include drive belts or couplings, hydraulic fluid, filters, hoses, control levers, wheel motors or other leaking in the hydraulic circuit. A pressure and flow test in both sides can reveal whether one pump is performing poorly. Inspection of the reservoir for contamination as a result of pump damage is necessary too.

When replacing a part, the hydraulic lines must be capped to avoid any contamination, and all connections should be marked to ensure proper assembly of the hydraulic circuit. The drive system and alignment should be checked, and the pump must be primed in accordance with the equipment service manual. When starting, the machine should be tested in low speeds in a safe environment. Tests such as movement in forward and backward directions, neutrality, tracking, and leakage should be performed.

Rexton Hydraulic offers after-market John Deere RH AUC13380 Wheel Hydraulic Pumps depending on availability and compatibility. We also support in identification, installation and troubleshooting, repairs with hydraulic spare parts.
