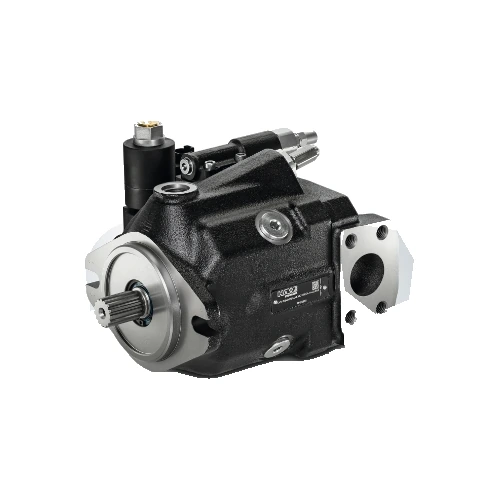

HAWE C41V Hydraulic Axial Piston Pump
HAWE C41V Hydraulic Axial Piston Pump
HAWE C41V Hydraulic Axial Piston Pump is a compact variable displacement pump for open-circuit mobile hydraulics. It uses the swash plate principle and offers displacement sizes from 28 to 115 cm3/rev.
- Variable displacement axial piston design for open-circuit mobile hydraulics
- Nominal pressure:- 250 or 280 bar depending on displacement
- Maximum speed:- Up to 3500 min-1 during suction operation, depending on displacement
- Swash plate operating principle
- Optimised power-to-weight ratio
- Broad range of pressure, load-sensing, power and flow controllers
- High self-suction speed
- Thru-shaft compatibility
- Compact design
- Clockwise or anticlockwise rotation options
Share Product:
HAWE C41V Hydraulic Axial Piston Pump is a variable displacement pump for open-circuit mobile hydraulic systems. It works on the swash plate principle and is built for equipment that needs hydraulic output matched to changing operating demand. The C41V series covers displacement sizes from 28 to 115 cm3/rev, with nominal pressure ratings of 250 or 280 bar depending on the selected size and peak pressure ratings of 315 or 350 bar. This gives machine manufacturers a practical range of options for compact mobile power units, work hydraulics and auxiliary drive functions.
The pump is designed with an optimised power-to-weight ratio, so it can deliver strong hydraulic performance without unnecessary size or mass. HAWE also specifies high self-suction speed and thru-shaft compatibility, both of which are useful in mobile machine layouts where space, drive arrangement and suction conditions matter. Maximum rotation speed during suction operation varies by displacement and reaches up to 3500 min-1 on the smallest version.
HAWE C41V pump also features clockwise or anticlockwise rotation, and suction and pressure connections are available through configuration-dependent flange ports or threaded connections. A broad controller range is one of the main strengths of the C41V. HAWE have pressure, load-sensing, power and flow controller options, including electro-proportional combinations. This helps the pump adapt to different hydraulic control strategies while keeping the same product family. Suitable HAWE-listed applications include forestry and agricultural machines, municipal trucks, construction machines, fan control systems and lifting platforms.
For tursted operation, the C41V uses hydraulic fluid according to DIN 51 524 Parts 1 to 3, ISO VG 10 to 68, with ISO 4406 18/16/13 cleanliness and the recommended viscosity range stated by HAWE. Basic pump weights range from 15 to 44 kg across the documented nominal sizes, which helps buyers compare installation requirements before choosing a configuration. HAWE also specifies an absolute inlet pressure requirement of 0.8 bar in open-circuit operation, supporting correct suction-line planning during system design.
Rexton Hydraulic offers HAWE C41V pump sales, professional repair, testing, maintenance and replacement services.
