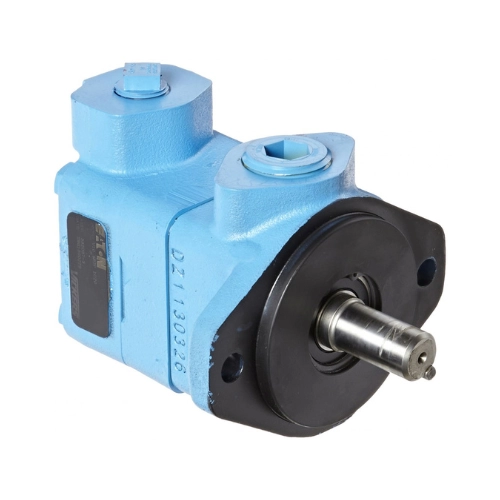

Eaton Vickers V10 Hydraulic Pump
Eaton Vickers V10 Hydraulic Pump
Eaton Vickers V10 Hydraulic Pump offers compact fixed-displacement performance with balanced-vane construction. Rated capacity options cover 1 to 7 USgpm. Rexton Hydraulic helps identify the correct cover, shaft, ports and rotation for replacement or repair.
- Brand: Eaton Vickers
- Series: V10
- Model: V10
- Pump Type: Fixed-displacement balanced vane pump
- Circuit: Open circuit
- Capacity: 1 to 7 USgpm rated capacity
- Pressure: Up to 172 bar, configuration dependent
- Configuration: Standard, flow-control and priority-valve cover options
Share Product:
Eaton Vickers V10 Hydraulic Pump is a compact, fixed-displacement flow pump meant for open circuit mobile and industrial hydraulic applications. It is a balanced vane pump with rated capacities that range from about 1 to 7 US gallons per minute, depending on the chosen displacement and full model code.
This pump supplies hydraulic fluid in a constant volume with each revolution of its shaft. The output flow of its varies according to the operating speed. For this reason, it is suitable for machinery that demands constant output of hydraulic fluid.
It uses hydraulically balanced principle to resist the effects of internal pressure forces on it and minimize excessive radial loads on the drive shaft and bearings. This makes it operate smoothly, minimize vibrations and deliver dependable service as long as it receives correct inlet conditions and clean hydraulic fluid.
Based on the configuration, the V10 may have standard, flow control, or priority valve covers. This allows for different circuit applications and keeps the size small. Models can be different based on shaft, mounting flange, ports and rotation.
Applications for the Eaton Vickers V10 include: steering circuits, lubricators, machine tools, lifts, agricultural equipment, material handling and auxiliaries. Suitability is determined by the application's needs in terms of flow, pressure and cycle. Matching only the V10 series name does not ensure proper installation.
Low flow, low pressure, excessive noise, overheating and shaft seal leakage may be caused by worn parts. Contaminated fluid, inlet restriction, improper viscosity and vane and cam ring surface damage may cause the same results. Inspection should be done on the following parts: pumping cartridge, cover assembly, shaft, bearings, housing and seals.
Rexton Hydraulic stocks, inspects and offer services Eaton Vickers V10 hydraulic pumps. Please supply us with the entire model number or the name plate photo when placing an order. We will need the flow, cover, shaft, mounting, ports and rotation to determine proper identification for your pump.
