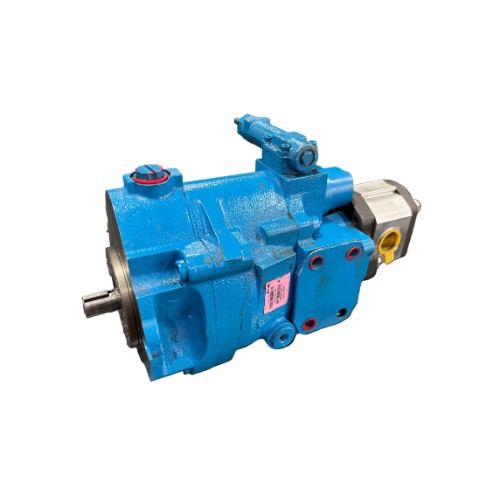

Eaton Vickers PVM045 Hydraulic Pump
Eaton Vickers PVM045 Hydraulic Pump
Eaton Vickers PVM045 is an open-circuit, variable-displacement axial piston pump with a geometric displacement of 45.1 cm³/rev, 315 bar (4,568 psi) nominal pressure and 350 bar (5,000 psi), momentary peak pressure.
- Brand: Eaton Vickers
- Model: PVM045
- Pump Type: Variable-displacement axial piston pump
- Circuit: Open circuit
- Displacement: 45.1 cm³/rev
- Pressure: 315 bar nominal, 350 bar peak
- Maximum Speed: 1,800 rpm
- Maximum Flow: 76 L/min
- Controls: Pressure compensator and load-sensing options
Share Product:
Eaton Vickers PVM045 Hydraulic Pump is a variable displacement axial piston pump used in open circuit applications to provide controlled flow. The pump has a geometrical displacement of 45.1 cubic centimetres per revolution; therefore, it falls into the category of pumps with mid-range capabilities needed for machinery that demands higher hydraulic flow than what is provided by small-size pumps without switching to larger-size installations. The PVM045 pump can be responsive to changing conditions of the system in terms of pressure and flow rate.
The Eaton Vickers PVM045 Hydraulic Pump is rated for maximum pressure of 315 bar and can deal with peak pressures up to 350 bar. The pump can run at a maximum speed of 1,800 revolutions per minute and produce about 76 litres per minute maximum flow at that speed, according to catalogue data. The weight of the pump is about 24 kg. These figures should be used as references only since the performance of the pump will depend on the conditions of the hydraulic fluid, temperature, inlet pressure, filtration and control settings.
Various types of control settings can be made using the PVM045 pump based on the model code PVM045. These include pressure compensation and load sense controls. The displacement can be adjusted by the pump to provide optimal energy consumption by minimizing the amount of fluid delivered that is not needed as the pump does not deliver full power. There are various features that can be varied depending on the different pump configurations such as shaft type, mounting flange, port configuration, and rotation.
Rexton Hydraulic gives identification, supply, and repair services for Eaton Vickers PVM045 Hydraulic Pumps. It would be advisable to give the full nameplate number and the machine details to ensure that the controls, shaft, mounting, ports, and direction are correctly checked. Rexton Hydraulic is an independent hydraulic supply and services company offering after-market solutions, parts and repair services for our reputed clients.
