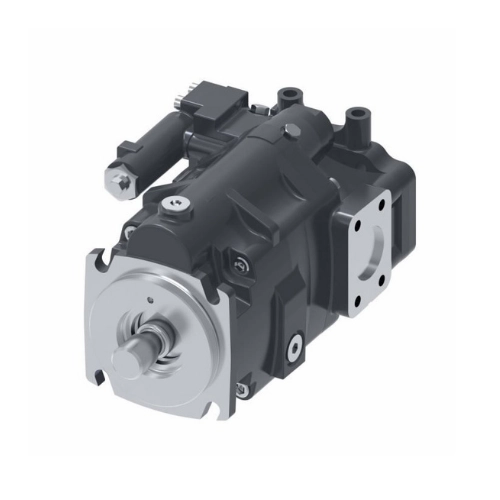

Eaton Vickers PVM063 Hydraulic Pump
Eaton Vickers PVM063 Hydraulic Pump
Eaton Vickers PVM063 is an open-circuit, variable-displacement axial piston pump with a geometric displacement of 63.1 cm³/rev, 230 bar (3,300 psi) nominal pressure and 280 bar (4,000 psi), momentary peak pressure.
- Brand: Eaton Vickers / Vickers by Danfoss
- Series: PVM
- Model: PVM063
- Pump Type: Variable-displacement axial piston pump
- Circuit: Open circuit
- Geometric Displacement: 63.1 cm³/rev
- Nominal Pressure: 230 bar (3,300 psi)
- Peak Pressure: 280 bar (4,000 psi), momentary
- Maximum Speed: 1,800 rpm (quiet version)
- Maximum Flow: 111 L/min at 1,800 rpm
Share Product:
Eaton Vickers PVM063 Hydraulic Pump provides variable hydraulic flow to open-circuit mobile and industrial machines. This hydraulic pump has a variable-displacement axial piston configuration with geometrical displacement of 63.1 cm³ per revolution. As such, it can be used in equipment requiring adjustable flow depending on various stages of operation. The lightweight build coupled with reasonable flow range makes it ideal for construction equipment, materials handling machinery, hydraulic power packs and industrial manufacturing processes.
PVM063 comes with the nominal pressure capacity of up to 230 bar and peak pressure of up to 280 bar. The maximum operating speed of the pump is 1,800 rpm. At this speed, it can generate around 111 l/min of maximum flow rate as per catalogued specifications. The pump weighs about 36 kg. Nonetheless, its operational capacity depends on the hydraulic oil viscosity, operating temperature, inlet pressure, control setting and overall system efficiency.
There are various control options available for the Eaton Vickers PVM063 Hydraulic Pump like pressure-compensated, load sensing and others depending on the complete nameplate code of the pump. The controls help to vary the pump displacement depending upon the demand of the system. Thus, the pump will be able to cut off any unnecessary flow when the system needs lesser hydraulic energy.
Proper identification of the model is critical when buying the replacement of the PVM063 pump. It could be possible that different models of the pump have different shafts, mounting flanges, porting pattern, rotation direction and controls. In some cases, there can be a provision of through-drive in the pump. Thus, buyers should always go for the complete nameplate code of the pump.
Rexton Hydraulic is a source of identification, supply, and professional repairs of Eaton Vickers PVM063 hydraulic pumps. Our personnel may analyze the model number, specifications, and problem symptoms to suggest an appropriate solution. It should be noted that Rexton Hydraulic works as an independent hydraulic service and supply company located in Delhi, India.
